UltraMod isolated converters

Ultra compact modular blocks can be configured to meet system design.

  • Modular blocks can be configured in series or parallel
  • Voltages up to 1200 V
  • Scalable, power from 1.5 kW to 50 kW
  • Fully bi-directional
  • Start up from either power port
  • Increase availability for redundant systems
  • Integrated EMI filtering

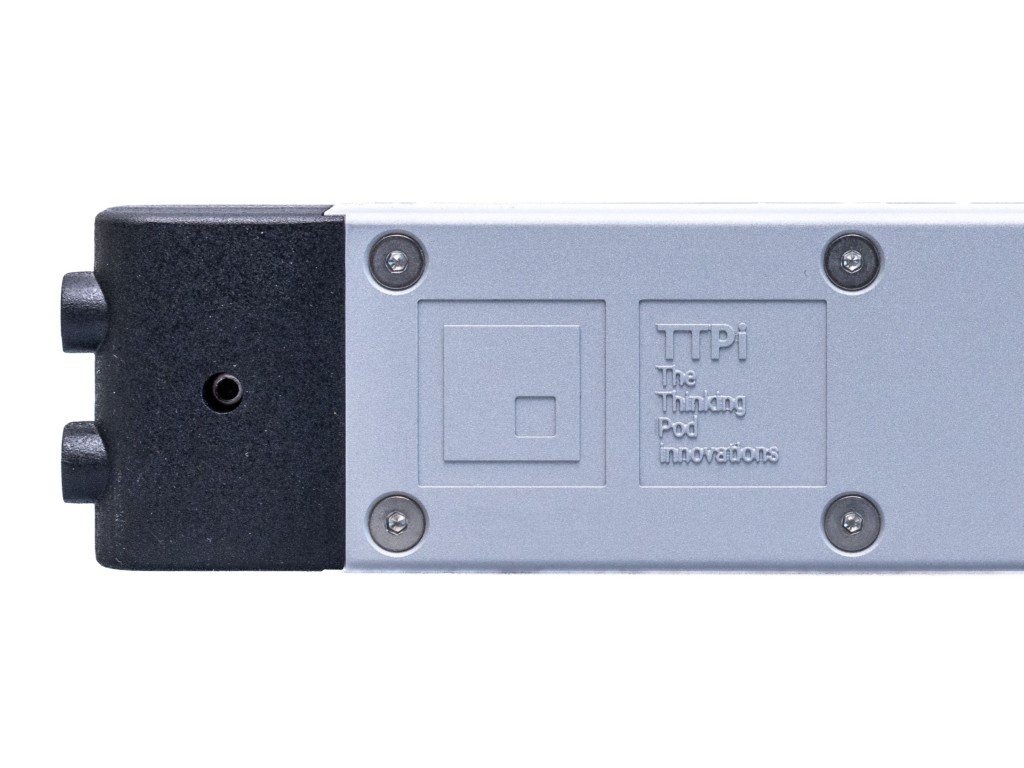

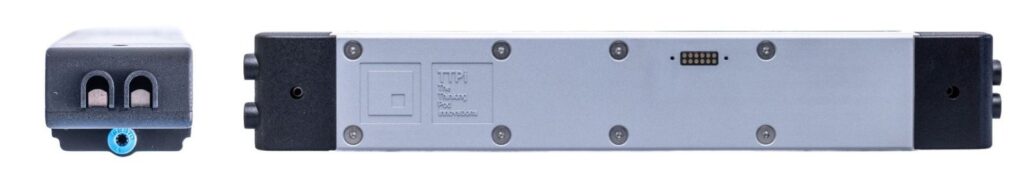

UlraMod 4kW model

Flexible thermal management solutions

Liquid Cooling Option

Power-converter specific jet impingement or turbulator solutions provide highly effective thermal management whilst optimising fluid flow rates and pressure drop to minimise pumping power required for cooling

Baseplate Option

Highly effective heat spreading Cu baseplates; This option is best used where existing thermal management solutions or new integrated system-level coolers such as cold-plates or force air cooled heatsinks are to be employed.

HV – LV 4kW DC – DC

  • HV port 500V – 900V, 8A
  • LV port 48V version (32V – 64V) 90A
  • Power 4.3kW
  • Up to 97% Efficiency
  • 72mm x 112mm x ~20mm (Dependant on cooling configuration)

HV – LV 1.5kW DC – DC

  • HV port 250V – 450V, 6A
  • LV port 12V version (8V – 16V) 180A
  • LV port 24V version (16V – 32V) 90A
  • Power 1.5kW
  • Up to 97% Efficiency
  • 38mm x 112mm x ~20mm (Dependant on cooling configuration)

HV – HV

  • HV port 250V – 450V, 6A
  • Power 1.5kW
  • Up to 97% Efficiency
  • 38mm x 112mm x ~20mm (Dependant on cooling configuration)

AC – DC

  • DC port HV version: 250V – 450V, 6A
  • DC port LV version: 12V (8V – 16V) 180A
  • DC port LV version: 24V (16V – 32V) 90A
  • AC port 230V AC version
  • AC port 110V AC version
  • Power 1.5kW
  • Up to 97% Efficiency
  • Three phase versions also available

For more information or to request a quote, please get in touch.

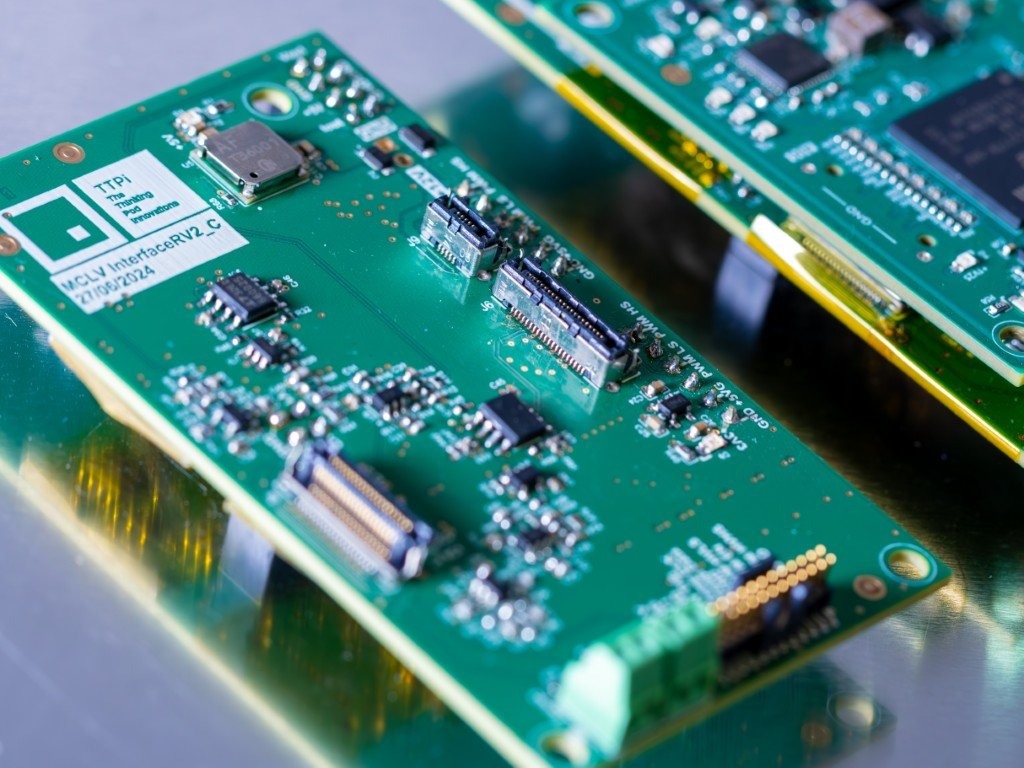

Integrated Drive systems

Integrated Automotive, Industrial and Aerospace Drive systems

  • Compact power electronics for motor drives to fit the motor envelope
  • Able to drive all common electric motors – Induction motors, SPM, IPM, Syn-Rel PMA motors, SRM
  • Input power factor control
  • No requirement for drive cabinets
  • Reduced cabling and materials leading to reduced costs
  • Better utilisation of space
  • Simplified installation and replacement
  • Optimised control and modulation according to the operating point of the system / for specific uses cases
  • Improved EMI
  • Silicon, SiC, GaN based converters
  • System efficiency improvements
  • Improved reliability in harsh environments
400V DC, 400A, 6-phase automotive traction drive

Automotive

  • Reduction in physical size and weight
  • HV compatible solutions eg 400 / 800 Volts
  • Reduced requirement for electrolytic capacitors
  • Dynamic efficiency control removes the need for vehicle space heaters

Industrial

  • Compact power electronics for motor drives to fit the motor envelope
  • Direct AC to AC conversion for reduced size and Bill of Materials
  • Universal input (380 – 415 Volts, 50/60 Hz standard grid frequency)
  • Optimised control and modulation according to customer requirements and specifications.

Aerospace

  • Optimised high frequency switching for high speed drives
  • Flexible input frequency (360 – 850 Hz)

For more information or to request a quote, please get in touch.

UltraMod Non-Isolated Converters

High Power Density Converter-in-Package Solutions

  • Modular blocks can be configured in parallel
  • Voltages up to 1200 V
  • Scalable, power from 1.5 kW to 50 kW
  • Fully bi-directional
  • Start up from either power port
  • Increase availability for redundant systems
  • Integrated EMI filtering
  • Flexible cooling (integrated liquid or base plate)
  • Optimised for power density
  • Flexible conversion topologies from AC / DC to AC / DC
  • AC / AC
    • Direct three-phase to three-phase
    • Back-to-back three phase to three-phase
    • Three-phase to single-phase
  • Very high modulated output bandwidth – up to 100khz

DC-DC example

  • Step down converter 500V DC, 100A
  • GaN Based, 2MHz switching frequency
  • Integrated input and output filters
  • Integrated measurement and controls

AC-AC

  • Suitable for grid interfaces, motor drives, renewable energies, drive trains
  • Example specification
    • up to 480 V input
    • 40 A output
    • > 50 kHz switching

Fuel Cell

  • Constant DC bus from a variable input voltage
  • Bi-directional
  • Continuous buck / boost capabilities
  • Example specification
    • 200 V – 800 V input
    • up to 800 V output
    • up to 100 kW

For more information or to request a quote, please get in touch.

Embedded Si, GaN or SiC Die Solutions

  • High power density embedded die solutions
  • Integrated thermal management and electro-magnetic shielding
  • Optimised switching behaviour for increased efficiency
  • Full copper interconnect – aluminium wire bond free

For more information or to request a quote, please get in touch.
